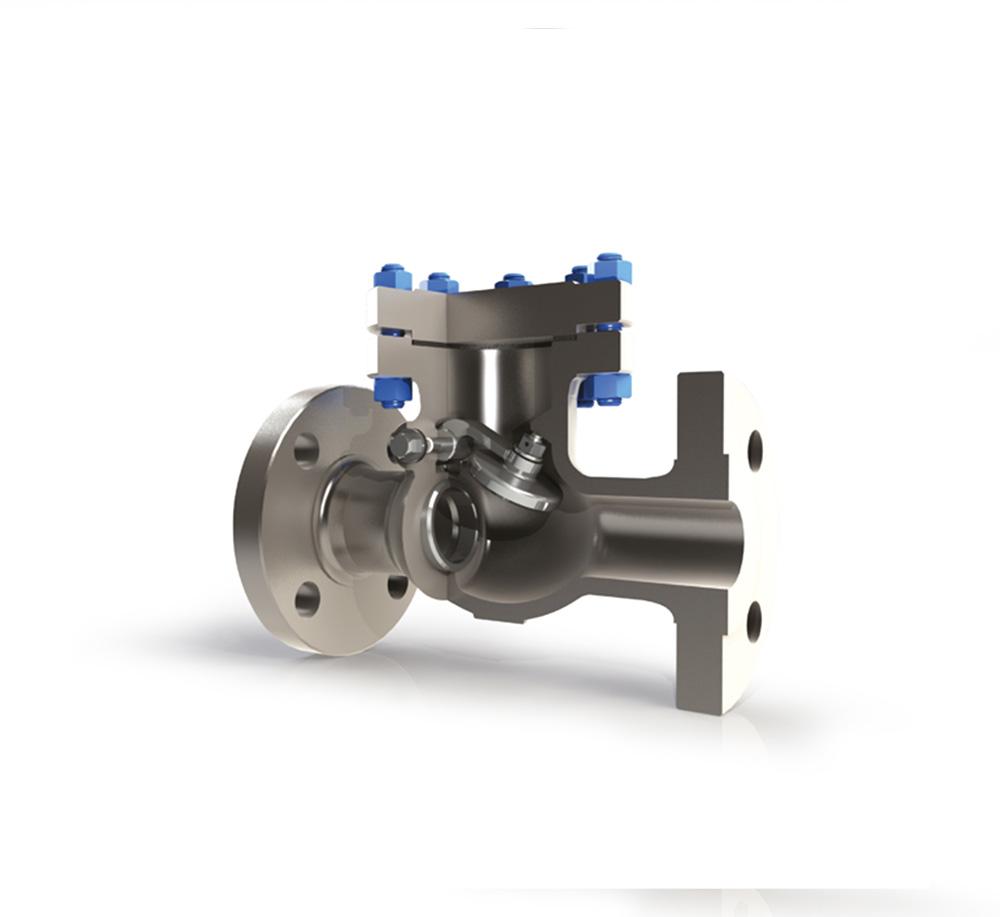

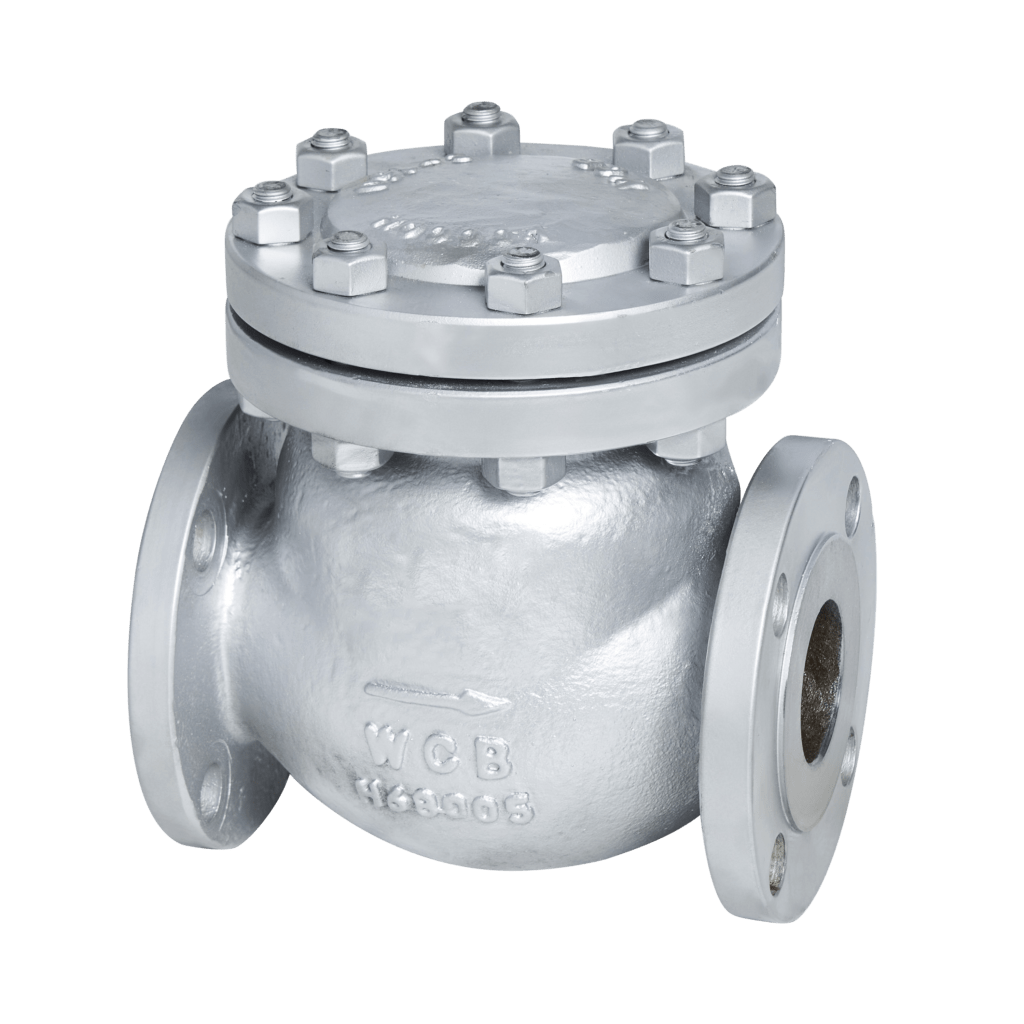

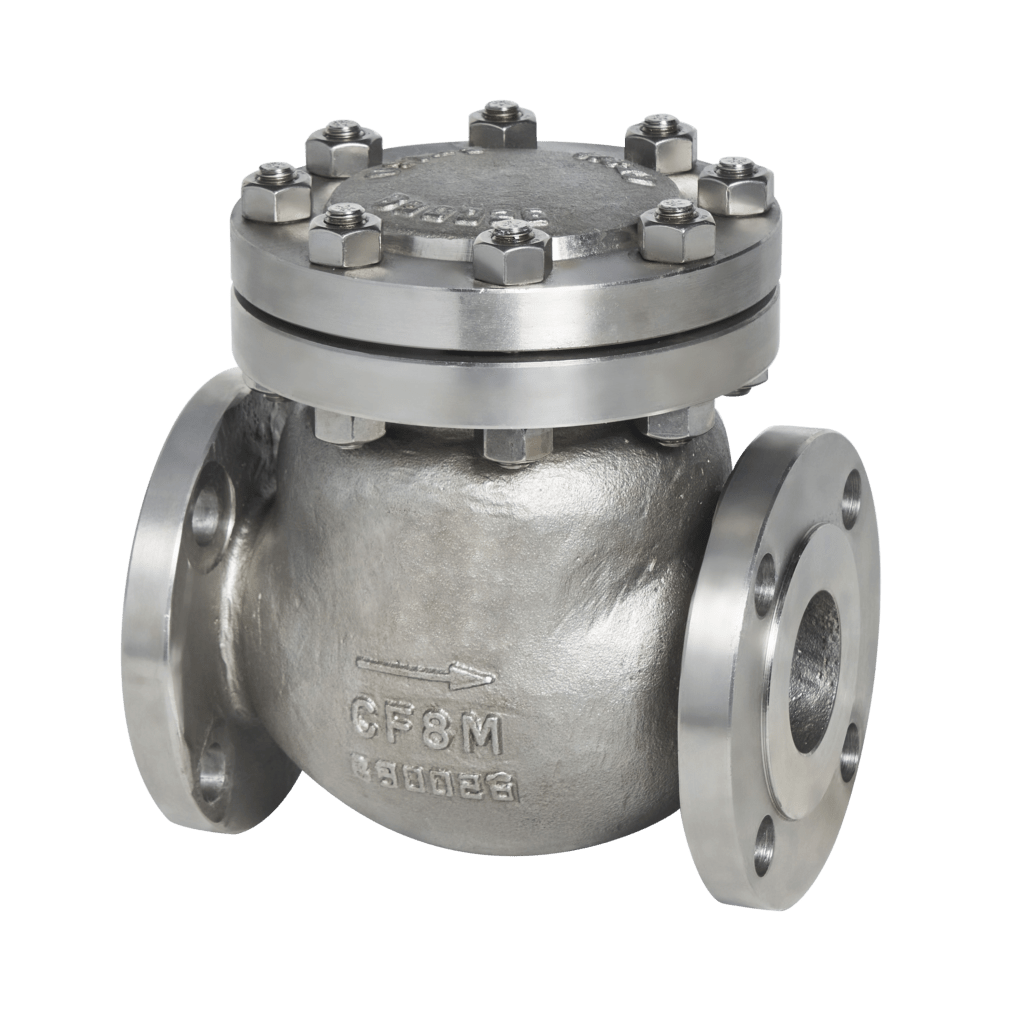

Check Valve
Check Valve
Check Valve
Technical Features
Sizes: ½” to 20” (Larger Sizes on request)
Pressure Rating: Class 150 to Class 1500
End Connections: Flanged Ends RF/RTJ, BWE & Other End Connections available on request.
Materials: CS – ASTM A216 WCB, SS – ASTM A351 CF8M and Other materials available on request.
Trim: API #5, #8, #12, #16, HF, HFS and Other trims available on request.
Operation: Self Actuated.
Basic Design: BS 1868
Pressure Temperature Rating: ASME B16.34 (For Metallic Parts Only)
End Connection: Flanged RF/RTJ – ASME B16.5
Face to Face: ASME B16.10
Valve Testing: API 598
Standard Features: Uni-Directional, Bolted Cover, Swing Type Disc, Welded in Seat.
Special Features: Full Opening, Pressure Seal Bonnet, Position Indicator, Counter Weight/Damper and Other options available on request.
