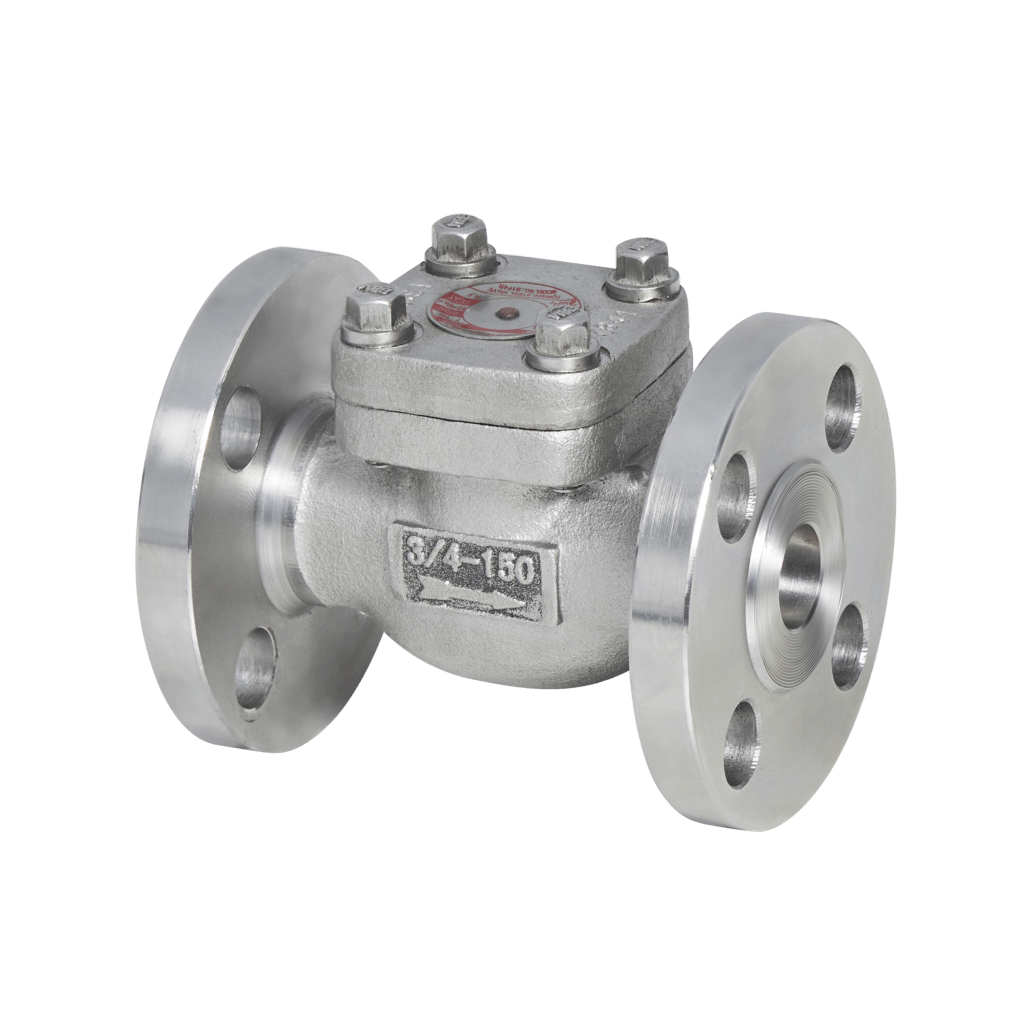

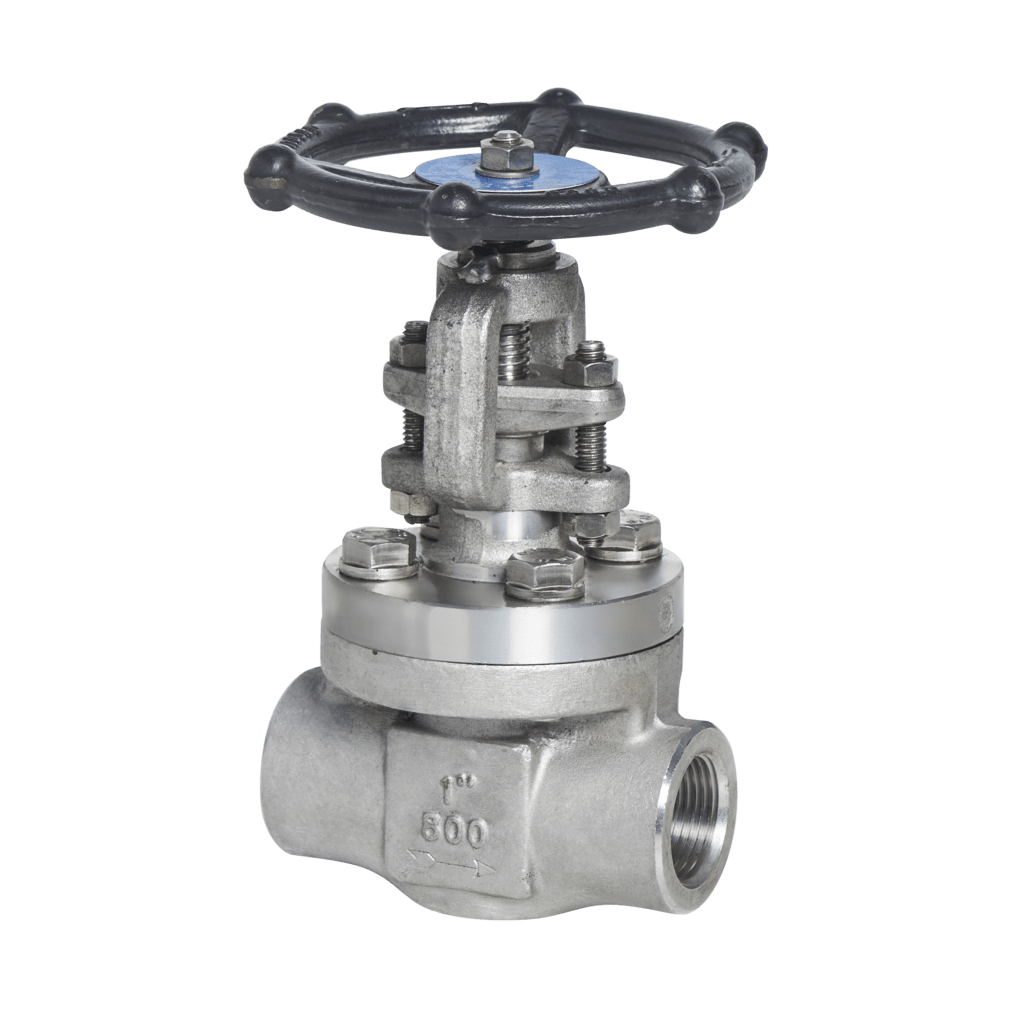

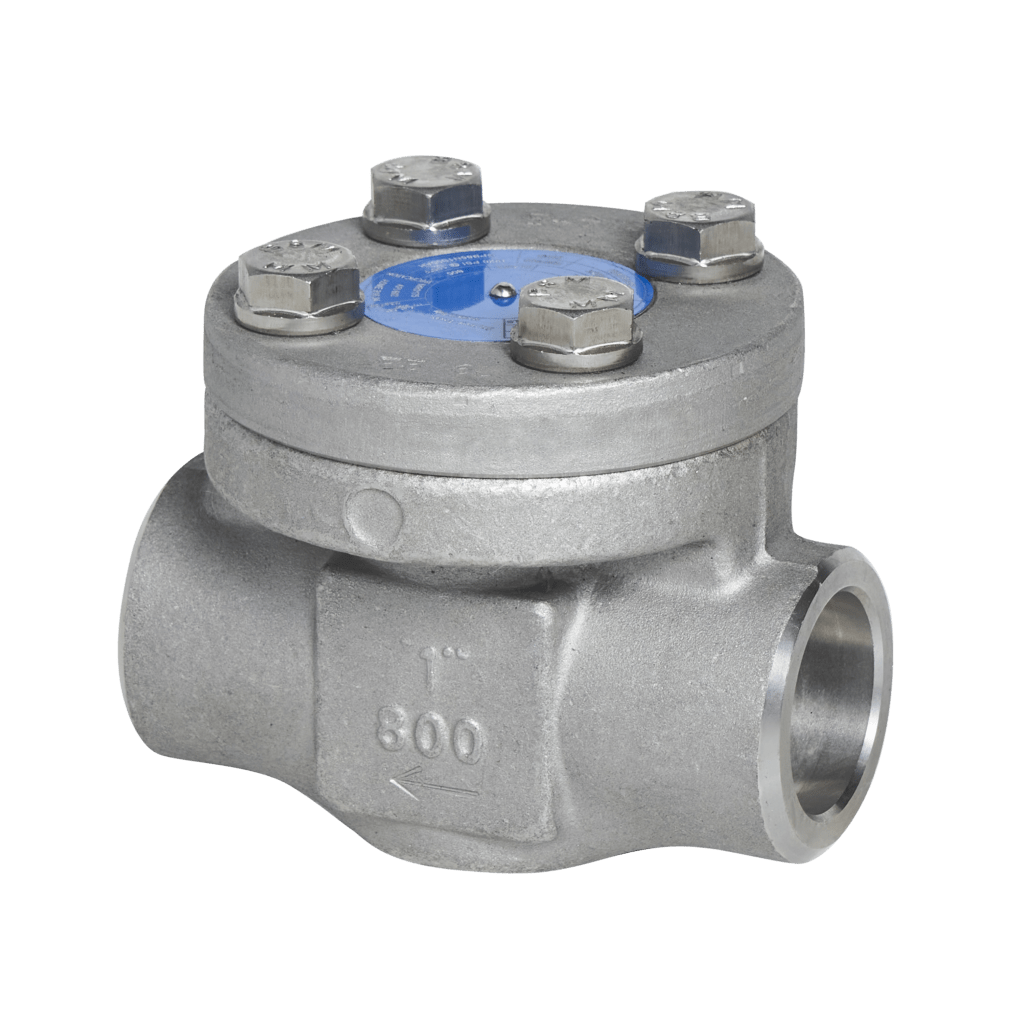

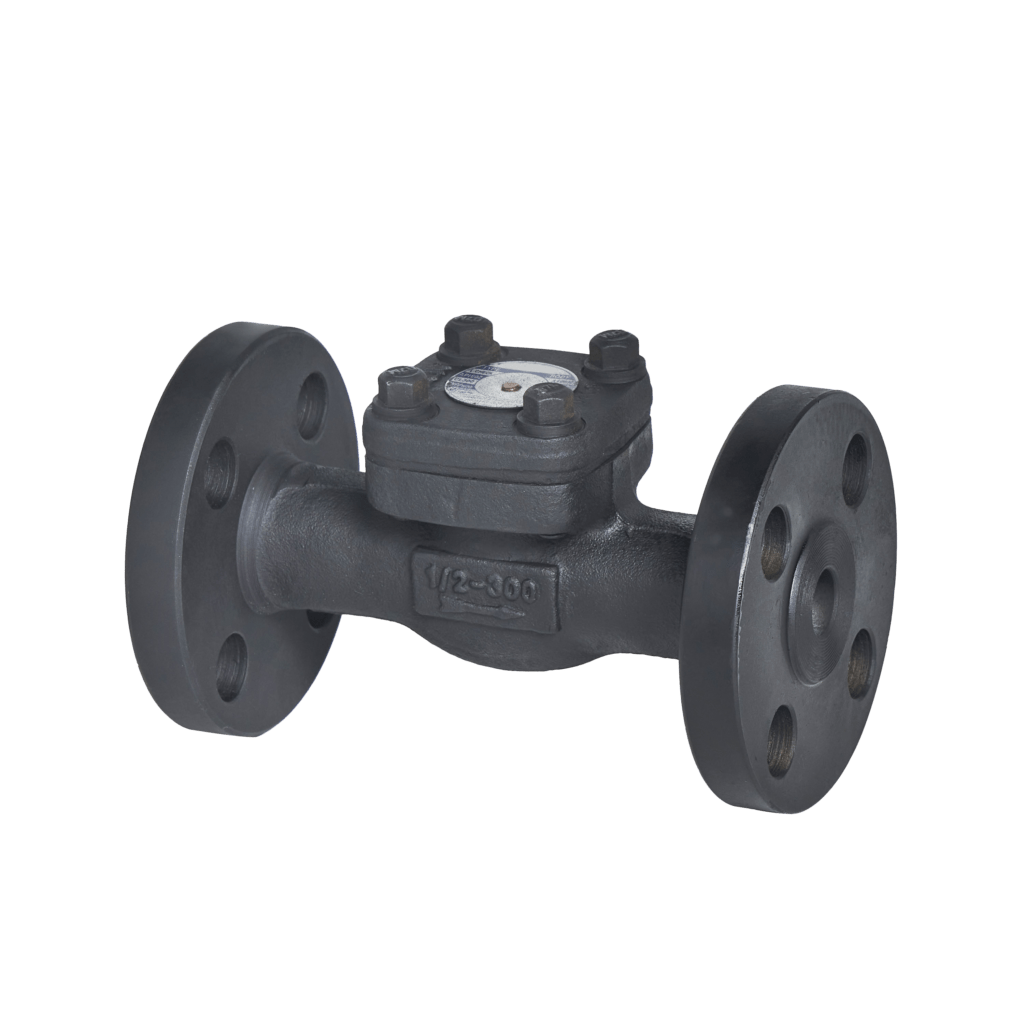

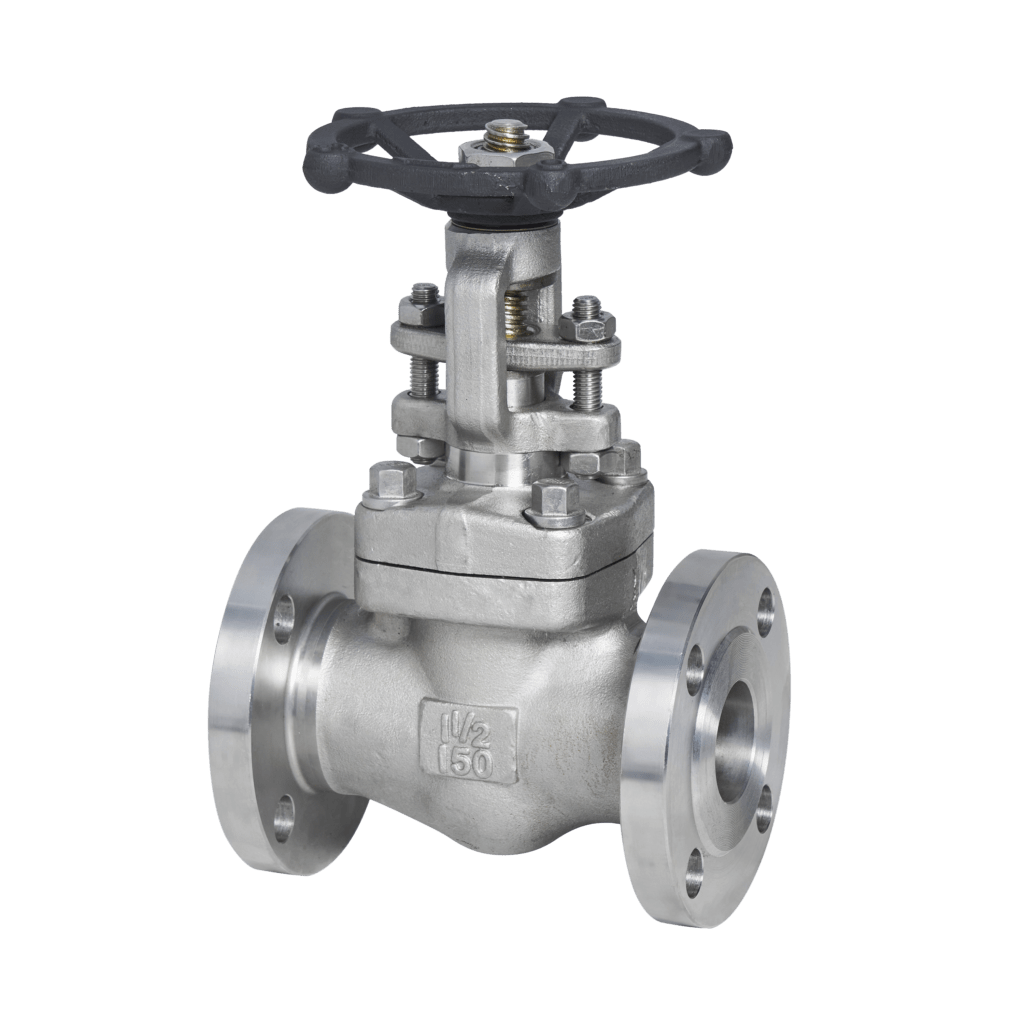

Forged Steel Valve
Forged Steel Valve
Forged Steel Valve
Technical Features
Sizes: ½” to 2” (Larger Sizes on request)
Pressure Rating: Class 800, Class 150 to Class 2500
End Connections: Socket Weld, FNPT, Flanged Ends RF/RTJ, BWE & Other End Connections available on request.
Materials: CS – ASTM A105N, ASTM A350 LF2, SS – ASTM A182 F316/316L and Other materials available on request.
Trim: API #5, #8, #12, #16, HF, HFS and Other trims available on request.
Operation: Manual (Handwheel Op).
Basic Design: API 602
Pressure Temperature Rating: ASME B16.34 (For Metallic Parts Only)
End Connection: Flanged RF/RTJ – ASME B16.5, Socket Weld – ASME B16.11, FNPT – ASME B16.11/ASME B1.20.1.
Face to Face: ASME B16.10(Flanged Ends Only), Manufacturer’s Standard.
Valve Testing: API 598
Standard Features: Bi-Directional (Gate), Uni-Directional (Globe/Check), Bolted Bonnet, OS&Y (Gate/Globe), Spring Energized (Piston Check), Solid Wedge (Gate), Rising Stem (Gate), Rising Handwheel (Globe), Non-Return (Check).
Special Features: Low Emission Packing to API 622, Pressure Seal Bonnet, Extended Bonnet (Gate/Globe), Position Indicator (Globe) and Other options available on request.
