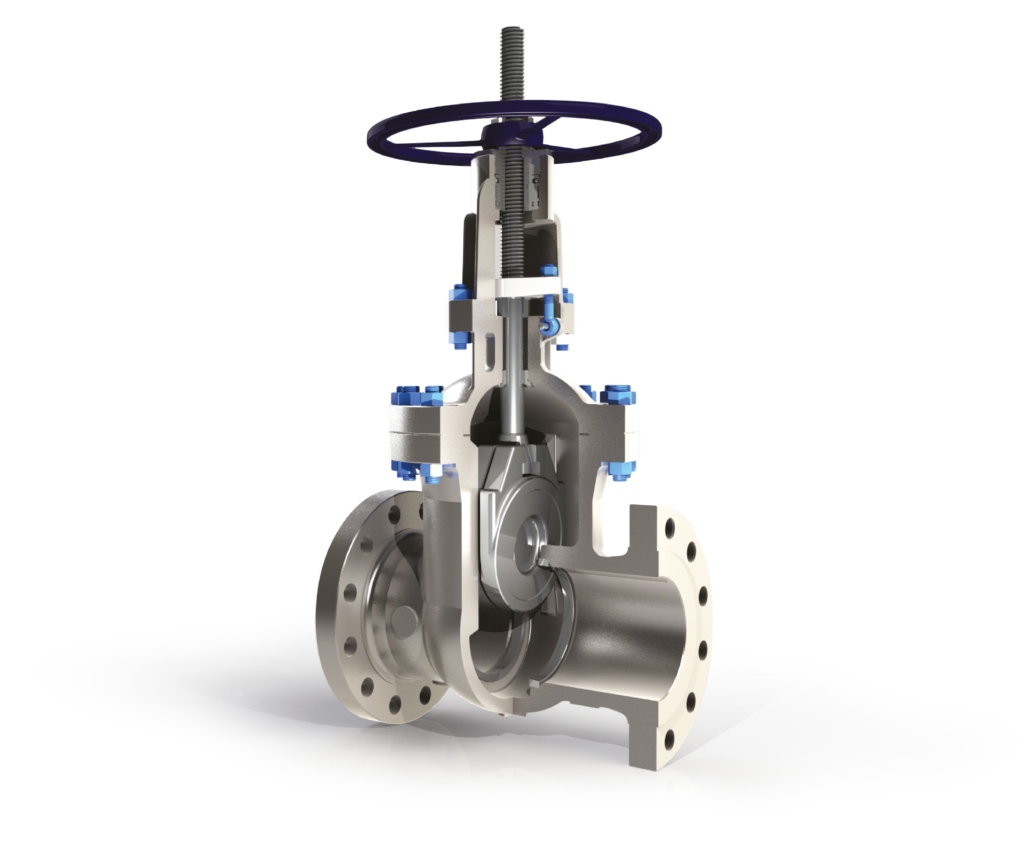

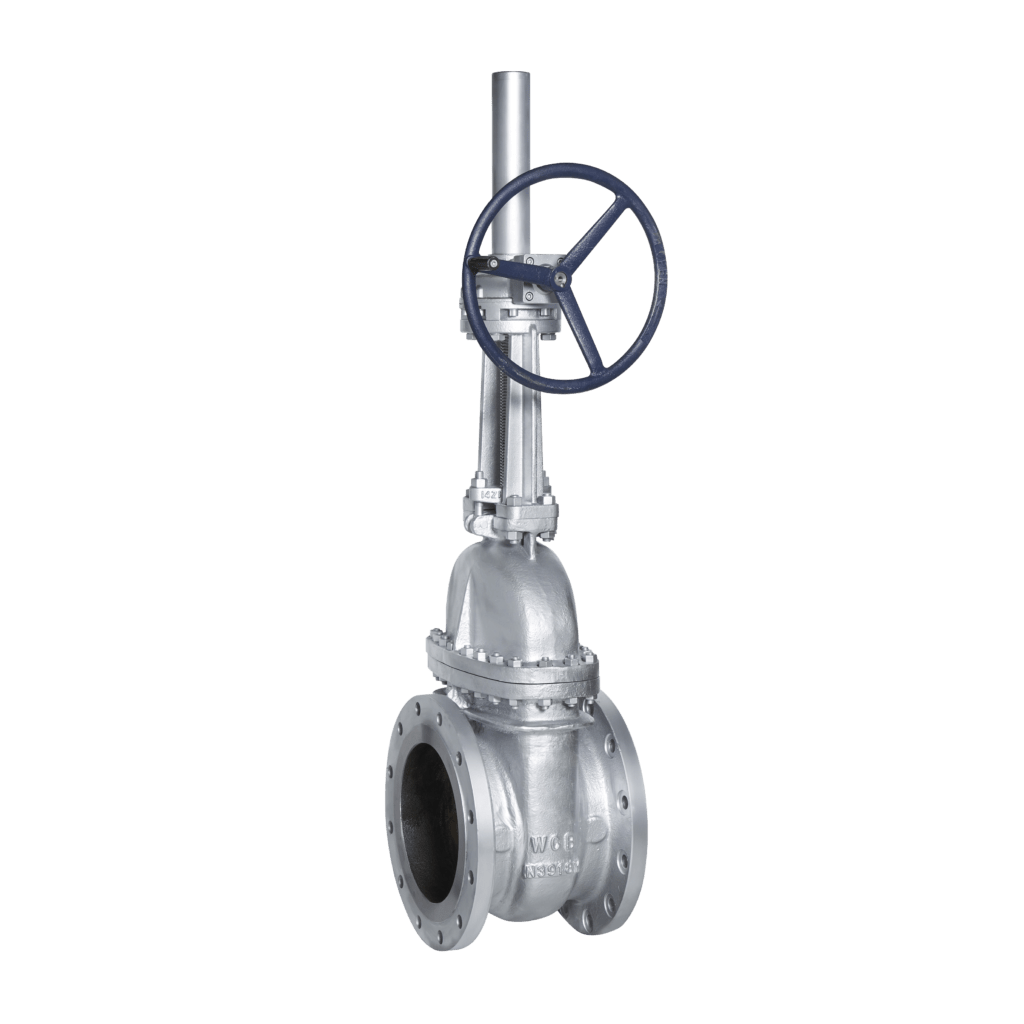

Gate Valve
Gate Valve
Gate Valve
Technical Features
Sizes: ½” to 30” (Larger Sizes on request)
Pressure Rating: Class 150 to Class 2500
End Connections: Flanged Ends RF/RTJ, BWE & Other End Connections available on request.
Materials: CS – ASTM A216 WCB, SS – ASTM A351 CF8M and Other materials available on request.
Trim: API #5, #8, #12, #16, HF, HFS and Other trims available on request.
Operation: Manual (Handwheel Op and Gear Op), Actuated (Motorized) Option available on request.
Basic Design: API 600
Pressure Temperature Rating: ASME B16.34 (For Metallic Parts Only)
End Connection: Flanged RF/RTJ – ASME B16.5
Face to Face: ASME B16.10
Valve Testing: API 598
Standard Features: Bi-Directional, Bolted Bonnet, OS&Y, Flexible Wedge, Welded in Seat, Backseat, One Piece Stem, Rising Stem, Adjustable Gland in Service.
Special Features: Low Emission Packing to API 622, Pressure Seal Bonnet, Bypass, Drains, Extended Bonnet, Double Start Stem, Position Indicator, Chain Wheel, Locking Device and Other options available on request.
For More Information about our products, please contact us for more details.
